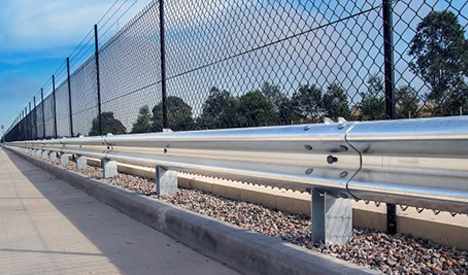

Guardrail powder coating

Location: China
Business Type: Manufacturer, Exporter
Brands: Huacai
Certificate: ACS,NSF,QUALICAOT,WRAS,KTW
Model: RAL COLOR
Terms of payment and delivery: 30% Pre-payment,70% before delivery
Minimum order quantity: 100kg
Price: Consultation
Packing details: 20kg/ctn
Delivery time: 7-10DAYS
Payment method: T/T,L/C
E-mail : [email protected]
















BRIEF

It is made of German and Poly-turned trees and TGIC or HAA and other chemicals.



CHARACTERISTIC

Excellent mechanical properties and excellent weather resistance.



APPLICATION FIELD

Suitable for all kinds of long-term outdoor exposure products such as communication base stations, mechanical equipment, household appliances, architectural aluminum profiles, transportation facilities, stadium facilities, courtyard facilities, etc.



PRODUCT SERIES

Available in standard weathering and ultra-high weather resistant products; can be made into a variety of gloss and a variety of colors; can be made into flat, sand, wrinkles, metal effects and mixed colors; some products are certified by Qualicoat Classl.



POWDER PROPERTIES

Specific gravity:11-1.8g/cm2;



FILM PROPERTIES

Mechanical

behavior

Pencil
hardness
GB/T6739-1996 ≥H
Adhesion GB/T9286-1998 Level0
Bending GB6742-86 φ3mm
Shock GB/T1732-93 50kg.cm
Cup burst GB 9753-88 >6mm

Corrosion

resistance

Salt spray
resistance
GB/T1771-91 No change in coating film for 1000 hours,single side corrosion<2mm at the cross-section
Wet heat
resistance
GB/TI740-79 >1000 hours of light loss,≥l
Corrosion
resistance
Photoaging test ASTM Gl540UV0.78w/m/@340nm 500h Guaranteed light rate
≥80%

Note: The above parameters are laboratory data and are for reference only. The actual indicators are related to the customer's environment, equipment, substrate, pre-treatment, spraying process and other factors.



APPLICATION CONDITION

Pre-treatment: phosphating treatment, inscription processing; coating: polyester powder coating is suitable for the following equipment coating: corona electrostatic spraying, friction electrostatic spraying, electrostatic fluidized bed spraying.Curing conditions:200·C@ 10 minutes,1800C @ 15 minutes, can also be designed according to customer needs.



PACKAGE

Packed in carton, net weight 20kg/carton, lined with polyethylene plastic bag.



STORAGE CONDITIONS

Dry and ventilated indoor storage below 30 C, avoid direct sunlight. Under these conditions, the powder can be stored stably for 12 months. If it meets the requirements, it can still be used.



SAFE AND HEALTHY

All raw materials of powder coating do not contain toxic substances, and will not release toxic gases during baking.
but should avoid inhaling dust during use. Operators should wear dust masks and minimize long-term contact between skin and powder. The paint on the skin can be washed with soap.

about us huacai

Zhejiang Huacai Advanced Material CO., LTD is an outdoor powder coating manufacturer and electrostatic powder coating paints supplier. Our factory was established in 1998, covers an area of 30 thousand square meters. The company is located in Huzhou, Zhejiang. Guangdong Huacai Powder Technology CO., LTD was established in 2016, located in Dongwan, Guangdong. We’re the top ten manufacturers that produce indoor, outdoor powder coating and electrostatic powder coating paint in China. HUACAI regards product quality as the life of the enterprise, We strictly control the quality of products, in addition to own resin factory, we use advanced testing instruments(SHIMADZU XRF, Mastersizer 3000E, Datacolor 400) to test products.
